1622.2	Profi	Bormax®, Forstner Bit [INCH]

Art.- No.	O-Ø [mm]	O-Ø [Inch]	Stem Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
1622.214	7,94	5/16	6,5	8	90	57	Accessory	28.75
1622.215	9,53	3/8	8	8	90	57	Accessory	28.75
1622.217	12,7	1/2	8	8	90	57	Accessory	28.75
1622.219	15,88	5/8	8	8	90	57	Accessory	28.75
1622.220	17,46	11/16	8	8	90	57	Accessory	31.15
1622.221	19,05	3/4	8	8	90	57	Accessory	31.15
1622.222	20,64	13/16	8	8	90	57	Accessory	37.40
1622.223	22,23	7/8	10	10	90	57	Accessory	33.75
1622.224	23,81	15/16	10	10	90	57	Accessory	34.70
1622.225	25,4	1	10	10	90	57	Accessory	36.10
1622.226	26,99	1 1/16	10	10	90	57	Accessory	42.20
1622.227	28,58	1 1/8	12	10	90	57	Accessory	50.45
1622.228	30,16	1 3/16	12	10	90	57	Accessory	41.65
1622.229	31,75	1 1/4	12	10	90	57	Accessory	41.65
1622.230	33,34	1 5/16	12	10	90	57	Accessory	50.45
1622.231	34,93	1 3/8	12	10	90	57	Accessory	45.90
1622.233	38,05	1 1/2	14	10	90	57	Accessory	58.80
1622.235	41,28	1 5/8	14	10	90	57	Accessory	76.85
1622.237	44,45	1 3/4	16	10	90	57	Accessory	76.85
1622.239	47,63	1 7/8	16	10	90	57	Accessory	85.25
1622.241	50,8	2	18	10	90	57	Accessory	85.25
1622.243	53,98	2 1/8	18	10	90	57	Accessory	124.90
1622.245	57,15	2 1/4	20	13	90	57	Accessory	129.05

Sets

Art.- No.	Description		€
1622.605	5 pcs. Set in wooden case Ø 5/8, 3/4, 1, 1 1/8, 1 3/8 INCH	Accessory	190.60
1622.607	7 pcs. Set in wooden case Ø 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1 INCH	Accessory	190.60
1622.616	16 pcs. Set in wooden case Ø 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8 INCH	Accessory	791.15

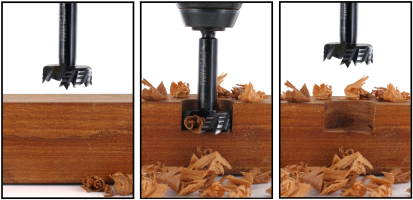

Bormax®! Centre point with cutting character. Two in reverse order staggered, grooved main cutting edges (from Ø 11 mm) and one circumferential cutting edge with longitudinal grooves - both effecting that a clear less feed force is necessary. Also they minimizes the friction and the growth of heat. Hexagonal shank for a better power transfer. Rapid drilling in soft wood, European hard wood, chipboard, MDF etc. Top for freehand drilling and stationary use. The low heat development offers an incredibly long service life with highest drilling quality. In combination with extension shanks of product line 1639 perfectly suitable for drilling deep holes.

Technical changes or mistakes reserved! All prices are non-binding price recommendations excluding VAT. Items marked with (*) are discontinued items.
