Product index / summary
Drills and Countersinks for Wood
Countersink
3577 Drill Bit - Countersink Set with Rotating Depth Stop
All prices plus inflation surcharge of 4.25% |
3577 |
 |
Drill Bit - Countersink Set with Rotating Depth Stop |
|---|
| Art.- No. | Description | € | |
|---|---|---|---|
| 3577.504 |
Drill Bit and countersink set in wooden box, 3 pieces, Ø 3, 4 and 5 mm incl. Rotatable depth stop |
Accessory | 81.85 |
| Art.- No. | Description | € | |
|---|---|---|---|
| 3577.103 | Countersink single I-Ø 3 mm | Accessory | 17.10 |
| 3577.104 | Countersink single I-Ø 4 mm | Accessory | 17.10 |
| 3577.105 | Countersink single I-Ø 5 mm | Accessory | 17.10 |
| 3577.130 | Pre-drill Ø 3 mm | Accessory | 2.80 |
| 3577.140 | Pre-drill Ø 4 mm | Accessory | 4.90 |
| 3577.150 | Pre-drill Ø 5 mm | Accessory | 5.40 |
| 3577.212 | Depth stop single, rotationally supported | Accessory | 19.55 |

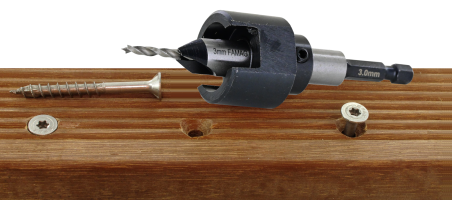

High quality drill bit - countersink set with rotating depth stop. Depth of pre-drill is adjustable. Countersink angle 60°. This set is particularly well suited for terrace
construction. It makes it easy to drill screwholes and to countersink them properly and accurate in the terrace boards. The depth stop is rotatably mounted and stops
when it touches the workpiece. This prevents the depth stop from leaving marks on the terrace boards. Adjust the depth so that the fl oor board is just perforated (board
thickness). Thus, the self-tapping terrace screw can fi nd a perfect hold.
| Technical changes or mistakes reserved! All prices are recommended retail prices additionally value added tax. |
|---|
