1662	Excellent	TCT-Cylinder Boring Bit

Art.- No.	O-Ø [mm]	Stem Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
1662.008	8	7	10	90	57	Accessory	61.25
1662.010	10	8	10	90	57	Accessory	61.25
1662.011	11	8	10	90	57	Accessory	65.15
1662.012	12	8	10	90	57	Accessory	65.15
1662.013	13	8	10	90	57	Accessory	73.40
1662.014	14	10	10	90	57	Accessory	73.40
1662.015	15	10	10	90	57	Accessory	73.40
1662.016	16	10	10	90	57	Accessory	75.35
1662.017 (*)	17	10	10	90	57	Accessory	75.35
1662.018	18	10	10	90	57	Accessory	75.35
1662.019	19	10	10	90	57	Accessory	75.35
1662.020	20	10	10	90	57	Accessory	75.35
1662.021	21	10	10	90	57	Accessory	77.40
1662.022	22	10	10	90	57	Accessory	77.40
1662.024	24	10	10	90	57	Accessory	77.40
1662.025	25	12	10	90	57	Accessory	77.40
1662.026	26	12	10	90	57	Accessory	77.40
1662.027	27	13	10	90	57	Accessory	99.45
1662.028	28	13	10	90	57	Accessory	79.45
1662.029	29	13	10	90	57	Accessory	99.45
1662.030	30	13	10	90	57	Accessory	79.45
1662.032	32	14	10	90	57	Accessory	83.10
1662.033	33	14	10	90	57	Accessory	114.60
1662.034	34	14	10	90	57	Accessory	83.10
1662.035	35	14	10	90	57	Accessory	83.10
1662.036	36	14	10	90	57	Accessory	83.10
1662.038	38	14	10	90	57	Accessory	98.65
1662.039 (*)	39	16	10	90	57	Accessory	123.00
1662.040	40	16	10	90	57	Accessory	98.65
1662.042	42	18	10	90	57	Accessory	123.70
1662.043	43	18	10	90	57	Accessory	146.35
1662.044	44	18	10	90	57	Accessory	146.35
1662.045	45	18	10	90	57	Accessory	127.30
1662.046	46	18	10	90	57	Accessory	147.70
1662.048	48	18	10	90	57	Accessory	153.25
1662.050	50	18	10	90	57	Accessory	145.80
1662.055	55	18	13	90	57	Accessory	173.10
1662.058	58	18	13	90	57	Accessory	196.80
1662.060	60	18	13	90	57	Accessory	203.65

Sets

Art.- No.	Description		€
1662.505	5 pcs. Set in wooden case Ø 15, 20, 25, 30, 35 mm	Accessory	349.35
1662.606	6 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40 mm	Accessory	438.00
1662.508	8 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40, 45, 50 mm	Accessory	683.45
1662.510	10 pcs. Set in wooden case Ø 10, 15, 18, 20, 22, 25, 26, 30, 35, 40	Accessory	767.20
1662.515	15 pcs. Set in wooden case Ø 10, 12, 15, 16, 18, 20, 22, 25, 26, 30, 35, 40, 45, 50 mm	Accessory	1142.60
1662.555	5-pcs. Set in wooden case Ø 22, 25, 38, 42 mm incl. Extension 250 mm for Spice grinders	Accessory	368.75

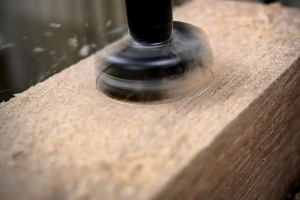

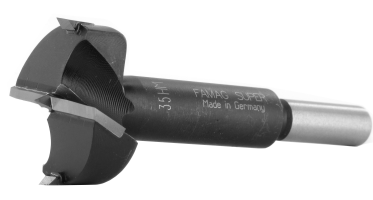

Carbide tipped with centre point, 2 main cutting edges, 2 spurs. Precisely ground by diamond wheel on CNC machines. High quality carbide tipping and special curved grinding (from Ø 25 mm) on the main cutting edges. Ø 8-12 mm are fi tted with a full TCT head and a spiral. From Ø 50 mm with hexagonal shank for a better power transfer. Tear free, accurate drillings in all hard wood materials, coated and plastic coated chipboards, as well as many plastics, such as acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board. Drilling with nearly no effort as well as an unbelievable service life, also for use in hard wood and hard plastics. Only recommended for stationary use! For freehand drilling we recommend the TCT-Bormax³ product line 1663.

Technical changes or mistakes reserved! All prices are non-binding price recommendations excluding VAT. Items marked with (*) are discontinued items.
