1624	Profi	Bormax Prima (Pilot Guided)

Art.- No.	O-Ø [mm]	Stem Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]	Z		€
1624.015	15	10	10	90	57	1	Accessory	36.65
1624.016	16	10	10	90	57	1	Accessory	36.65
1624.162	16,2	10	10	90	57	1	Accessory	39.10
1624.018	18	10	10	90	57	1	Accessory	39.10
1624.020	20	10	10	90	57	2	Accessory	39.10
1624.022	22	10	10	90	57	2	Accessory	41.55
1624.025	25	10	10	90	57	2	Accessory	43.50
1624.030	30	12	10	90	57	2	Accessory	48.60
1624.035	35	12	10	90	57	2	Accessory	56.70
1624.040	40	14	10	90	57	2	Accessory	64.25
1624.045	45	16	10	90	57	2	Accessory	81.85
1624.050	50	18	10	90	57	2	Accessory	88.25
1624.202	20,2	10	10	90	57	2	Accessory	41.65

Accessory

Art.- No.	O-Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]	PU [pcs]	Description		€
1624.004	4	4	45	30	1	pre-drill bit	Accessory	4.50
1624.104	4	4	45	30	4	pre-drill bit (PU 4 )	Accessory	15.90
1624.005	4	4	22	6	1	Centre point	Accessory	3.70
1624.105	4	4	22	6	4	Centre point (PU 4 )	Accessory	13.05

Sets

Art.- No.	Description		€
1624.505	5 pcs. Set in wooden case Ø 15, 20, 25, 30, 35 mm	Accessory	201.85
1624.507	5 pcs. Set in wooden case Ø 16, 18, 20, 22, 25 mm	Accessory	179.65
1624.506	6 pcs. Set in wooden case Ø 15, 20, 25. 30, 35 mm incl. extension 125 mm (1639.001)	Accessory	226.35
1624.606	6 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40 mm	Accessory	259.50
1624.570	7 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40, 50 mm	Accessory	338.95
1624.508	8 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40, 45, 50 mm	Accessory	412.50
1624.509	9 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40, 45, 50 mm incl. extension 250 mm (1639.002)	Accessory	441.70
1624.504	4 pcs. Set in wooden case Ø 35, 40, 45, 50 mm	Accessory	261.75

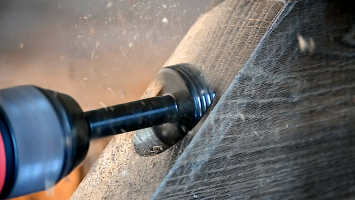

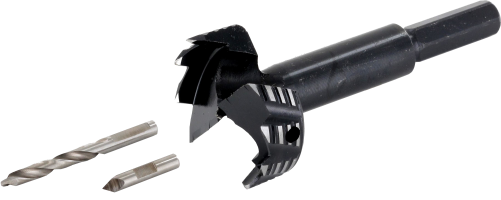

Bormax prima with exchangeable centre point and pre-drill bit. Two in reverse order staggered, grooved main cutting edges, a circumferencial cutting edge with longitudinal grooves - both effecting that a clear less feed force is necessary. Also they minimize the friction and the growth of heat. The pre-drill bit is ideal for drilling at an angle which is not 90° in workpieces surface, which occurs for example in the construction of staircase. Can be used with the centre point as traditional Bormax. Ø 16.2 mm for banisters with 16 mm stainless steel tubes.Clean drilling at many angles into soft wood, European hard wood, and MDF panels. Very good alternative to the expensive drill bit for construction of stairs product line 1575. In combination with extension shanks product line 1639 perfectly suitable for drilling deep holes. For harder materials like solid wood or plastic coated boards we recommend our product line 1664.

Technical changes or mistakes reserved! All prices are non-binding price recommendations excluding VAT. Items marked with (*) are discontinued items.
