1630	Classic	Forstner Bit, Classic

Art.- No.	O-Ø [mm]	O-Ø [Inch]	Stem Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
1630.213 (*)	6,35	1/4"	4,5	8	90	57	Accessory	17.85
1630.214 (*)	7,94	5/16"	8	8	90	57	Accessory	17.85
1630.215 (*)	9,53	3/8"	8	8	90	57	Accessory	17.85
1630.010 (*)	10		8	8	90	57	Accessory	15.70
1630.216 (*)	11,11	7/16"	8	8	90	57	Accessory	16.70
1630.012 (*)	12		8	8	90	57	Accessory	16.20
1630.217 (*)	12,70	1/2"	8	8	90	57	Accessory	18.70
1630.014 (*)	14		8	8	90	57	Accessory	16.90
1630.218 (*)	14,29	9/16"	8	8	90	57	Accessory	18.15
1630.015 (*)	15		8	8	90	57	Accessory	17.50
1630.219 (*)	15,88	5/8"	8	8	90	57	Accessory	19.30
1630.016 (*)	16		8	8	90	57	Accessory	17.60
1630.220 (*)	17,46	11/16"	8	8	90	57	Accessory	19.15
1630.018 (*)	18		8	8	90	57	Accessory	18.70
1630.221 (*)	19,05	3/4"	8	8	90	57	Accessory	21.70
1630.020 (*)	20		8	8	90	57	Accessory	19.65
1630.222 (*)	20,64	13/16"	8	8	90	57	Accessory	21.70
1630.022 (*)	22		10	10	90	57	Accessory	21.10
1630.223 (*)	22,23	7/8"	10	10	90	57	Accessory	23.30
1630.224 (*)	23,81	15/16"	10	10	90	57	Accessory	23.15
1630.024 (*)	24		10	10	90	57	Accessory	22.35
1630.025 (*)	25		10	10	90	57	Accessory	23.65
1630.225 (*)	25,40	1"	10	10	90	57	Accessory	26.15
1630.026 (*)	26		10	10	90	57	Accessory	24.70
1630.027 (*)	27		10	10	90	57	Accessory	27.45
1630.028 (*)	28		12	10	90	57	Accessory	27.45
1630.227 (*)	28,58	1 1/8"	12	10	90	57	Accessory	30.15
1630.030 (*)	30		12	10	90	57	Accessory	28.00
1630.228 (*)	30,16	1 3/16"	12	10	90	57	Accessory	34.25
1630.229 (*)	31,75	1 1/4"	12	10	90	57	Accessory	34.25
1630.032 (*)	32		12	10	90	57	Accessory	31.20
1630.230 (*)	33,34	1 5/16"	10	10	90	57	Accessory	33.85
1630.034 (*)	34		12	10	90	57	Accessory	32.60
1630.231 (*)	34,93	1 3/8"	12	10	90	57	Accessory	33.85
1630.035 (*)	35		12	10	90	57	Accessory	33.85
1630.232 (*)	36,51	1 7/16"	14	10	90	57	Accessory	37.00
1630.038 (*)	38		14	10	90	57	Accessory	37.05
1630.233 (*)	38,05	1 1/2"	14	10	90	57	Accessory	37.00
1630.040 (*)	40		14	10	90	57	Accessory	40.55
1630.235 (*)	41,28	1 5/8"	14	10	90	57	Accessory	54.30
1630.237 (*)	44,45	1 3/4"	16	10	90	57	Accessory	54.30
1630.045 (*)	45		16	10	90	57	Accessory	49.35
1630.239 (*)	47,63	1 7/8"	16	10	90	57	Accessory	54.30
1630.050 (*)	50		18	10	90	57	Accessory	53.45
1630.241 (*)	50,80	2"	18	10	90	57	Accessory	58.75
1630.243 (*)	53,98	2 1/8"	18	10	90	57	Accessory	86.15
1630.245 (*)	57,15	2 1/4"	20	10	90	57	Accessory	88.90

Sets

Art.- No.	Description		€
1630.505 (*)	5 pcs. Set in wooden case Ø 15, 20, 25, 30, 35 mm	Accessory	109.90
1630.508 (*)	8 pcs. Set in wooden case Ø 15, 20, 25, 30, 35, 40, 45, 50 mm	Accessory	238.60
1630.510 (*)	10 pcs. Set in wooden case Ø 10, 15, 18, 20, 22, 25, 26, 30, 35, 40	Accessory	242.60
1630.515 (*)	15 pcs. Set in wooden case Ø 10, 12, 15, 16, 18, 20, 22, 25, 26, 28, 30, 35, 40, 45, 50 mm	Accessory	365.00
1630.607 (*)	7 pcs. Set in wooden case Ø 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1"	Accessory	129.40
1630.616 (*)	16 pcs. Set in wooden case Ø 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1.1/8, 1.1/4, 1.3/8, 1.1/2, 1.5/8, 1.3/4, 1.7/8, 2, 2.1/8"	Accessory	533.35
1630.804 (*)	4-pcs. set in metal tin Ø 20, 25, 30, 35 mm	Accessory	94.35
1630.606 (*)		Accessory	163.25

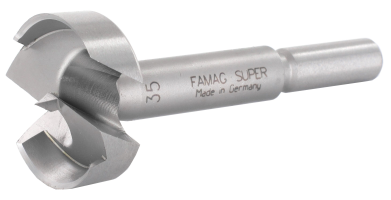

Traditional Forstner bit with centre point, 2 main cutting edges and 2 circumferential cutters. Low friction due to the reduced peripheral cutting edge. Tear free accurate holes in soft wood, glued laminated timber etc. Specially suitable for freehand boring with a drilling machine. For hard wood we recommend the rapid Forstner bit Bormax® of our product line 1622 or the TCT-Bormax³ of our product line 1663.

Technical changes or mistakes reserved! All prices are non-binding price recommendations excluding VAT. Items marked with (*) are discontinued items.
