3514/ 3582	Classic	Hinge Drill Bit

With Bormax geometry

Art.- No.	O-Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
3514.026	26	10	60	40	Accessory	18.45
3514.035	35	10	60	40	Accessory	18.45

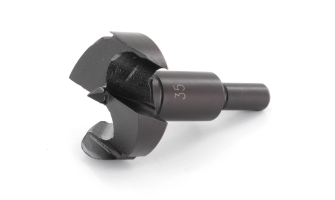

Alloyed tool-steel version

Art.- No.	O-Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
3515.026	26	8	60	40	Accessory	12.20
3515.035	35	8	60	40	Accessory	12.70

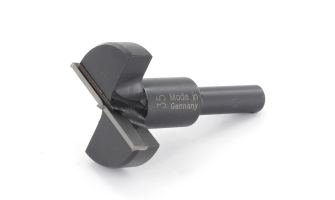

TCT version

Art.- No.	O-Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
3516.015	15	8	60	40	Accessory	23.05
3516.020	20	8	60	40	Accessory	23.05
3516.030	30	8	60	40	Accessory	23.05
3516.035	35	8	60	40	Accessory	22.15

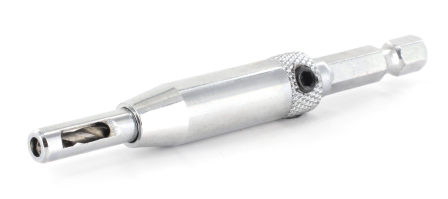

Self centering hinge drill bit Zenterfix

Art.- No.	O-Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]		€
3582.020	2,0	E 6,3	82	9	Accessory	19.20
3582.030	2,75	E 6,3	86	9	Accessory	19.55
3582.035	3,5	E 6,3	95	10	Accessory	20.95

Spare drill bit for Zenterfix

Art.- No.	O-Ø [mm]	OAL [mm]	Description	€
3582.120	2,0	51	spare drill bit HSS for 3582.020	1.45
3582.130	2,75	60	spare drill bit HSS for 3582.030	1.85
3582.135	3,5	70	spare drill bit HSS for 3582.035	2.10

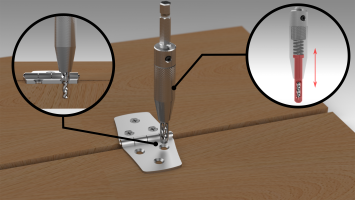

Small centre point, spur and 2 main cutting edges. The tool steel version for uncoated soft wood. The Bormax® geometry is used for coated boards and limited for plastic laminated chipboards or MDF. Carbide tipped version can be used without problems for plastic coated materials. All versions only limited suitable for freehand drilling. The Zenterfi x will centre itself in a screw hole of a fi tting or a hinge. The Zenterfi x is equipped with a guide bush incl. spring and a core drill HSS with roof tip.

Technical changes or mistakes reserved! All prices are recommended retail prices additionally value added tax.
