Drills and Countersinks for Wood
Cylindrical boring bit

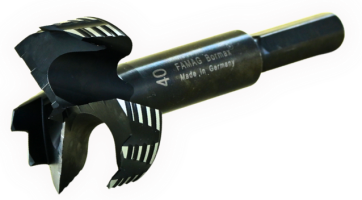

1620 Bormax®, 3-edged Forstner Bit
1620 |
 |
Bormax®, 3-edged Forstner Bit |
|---|
| Art.- No. | O-Ø
[mm] |
Stem Ø
[mm] |
SØ
[mm] |
OAL
[mm] |
Effective L.
[mm] |
€ | |
|---|---|---|---|---|---|---|---|
| 1620.015 | 15 | 8 | 8 | 90 | 57 | Accessory | 26.10 |
| 1620.020 | 20 | 8 | 8 | 90 | 57 | Accessory | 28.35 |
| 1620.025 | 25 | 10 | 10 | 90 | 57 | Accessory | 32.80 |
| 1620.030 | 30 | 12 | 10 | 90 | 57 | Accessory | 37.90 |
| 1620.035 | 35 | 12 | 10 | 90 | 57 | Accessory | 45.90 |
| 1620.040 | 40 | 14 | 10 | 90 | 57 | Accessory | 53.40 |
Bormax® WS 3-edged version. Centre point with cutting character. Three in reverse order staggered, grooved main cutting edges, one circumferential cutting edge with longitudinal grooves - both effecting that a clear less feed force is necessary. Also, they minimize the friction and the growth of heat. Hexagonal shank for a better power transfer. Larger chip space through optimization of the cutting edge geometry. Rapid drilling in soft wood, European hard wood, chipboard, MDF etc. Rapid chipping of solid wood and chipboards. Top for freehand drilling and stationary use. The low heat development offers a long service life with highest drilling quality. Compatible with depth stop 1621 and extensions 1639.
| Technical changes or mistakes reserved! All prices are non-binding price recommendations excluding VAT. Items marked with (*) are discontinued items. |
|---|
