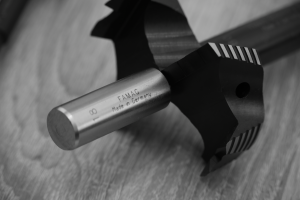

1614	Profi	Bormax® Prima, Long Version (Special Counterbore)

Art.- No.	O-Ø [mm]	AØ [Inch]	Stem Ø [mm]	SØ [mm]	IØ [mm]	OAL [mm]	Effective L. [mm]		€
1614.020	20		13	13	8	140	90	Accessory	84.70
1614.025	25		13	13	8	140	90	Accessory	88.15
1614.030	30		14	13	8	140	90	Accessory	97.50
1614.032	32		14	13	8	140	90	Accessory	101.90
1614.035	35		16	13	8	145	95	Accessory	101.90
1614.040	40		20	13	10	145	95	Accessory	110.95
1614.237	44,45	1 3/4"	20	13	10	150	100	Accessory	117.70
1614.045	45		20	13	10	150	100	Accessory	117.70
1614.050	50		20	13	10	150	100	Accessory	123.45
1614.241	50,80	2"	20	13	10	150	100	Accessory	123.45
1614.243	53,98	2 1/8"	20	13	10	150	100	Accessory	134.40
1614.054	54		20	13	10	150	100	Accessory	157.40
1614.055	55		20	13	10	150	100	Accessory	123.45
1614.245	57,15	2 1/4"	20	13	10	150	100	Accessory	134.40
1614.058	58		20	13	10	150	100	Accessory	134.40
1614.060	60		20	13	10	150	100	Accessory	134.40
1614.247	60,33	2 3/8"	20	13	10	155	105	Accessory	156.80
1614.249	63,50	2 1/2"	20	13	10	155	105	Accessory	168.05
1614.065	65		20	13	10	155	105	Accessory	156.80
1614.251	66,68	2 5/8"	20	13	10	155	105	Accessory	168.05
1614.068	68		20	13	10	155	105	Accessory	168.05
1614.253	69,85	2 3/4"	20	13	10	155	105	Accessory	168.05
1614.070	70		20	13	10	155	105	Accessory	168.05
1614.255	73,03	2 7/8"	20	13	10	155	105	Accessory	201.60
1614.075	75		20	13	10	155	105	Accessory	201.60
1614.257	76,20	3"	20	13	10	155	105	Accessory	201.60
1614.080	80		20	13	10	155	105	Accessory	201.60
1614.085	85		20	13	10	160	110	Accessory	252.05
1614.261	88,90	3 1/2"	20	16	10	160	110	Accessory	252.05
1614.090	90		20	16	10	160	110	Accessory	252.05
1614.095	95		24	16	10	160	110	Accessory	313.65
1614.100	100		24	16	10	160	110	Accessory	313.65
1614.265	101,60	4"	24	16	10	160	110	Accessory	313.65
1614.110	110		25	16	10	160	110	Accessory	364.10
1614.120	120		25	16	10	160	110	Accessory	364.10

Accessory

Art.- No.	Description		€
1619.208	HSS centre drill bit with shank-Ø 8 mm	Accessory	18.90
1619.210	HSS centre drill bit with shank-Ø 10 mm	Accessory	18.90
1614.208	HSS pre-drill bit Ø 8 mm for Ø 20 - 40 mm	Accessory	18.90
1614.210	HSS pre-drill bit Ø 10 mm for Ø 44,45 - 120 mm	Accessory	18.90

Sets

Art.- No.	Description		€
1614.509	Set of 9 pcs with depth stop in wooden case, 1614 Ø 50, 60, 70 mm. 1619 Ø 14, 18, 22 mm and MK2 fix adapter	Accessory	491.05
1614.510	Combination set of 10 pcs: 1614 Ø 40, 50, 60 mm and auger bit 1410.3 incl. 1619 Ø 12, 14, 18 mm and extension shank 250 mm	Accessory	453.25
1614.511	Combination set of 10 pcs: 1614 Ø 40, 50, 60 mm and auger bit 1410.3 incl. 1619 Ø 12, 16, 20 mm and extension shank 250 mm	Accessory	461.35

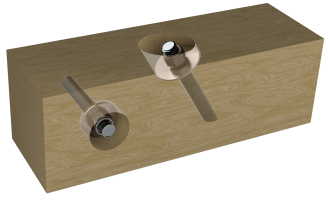

Bormax® prima with exchangeable pre-drill bit, centre drill bit or guiding pin. Due to the two main cutting edges, which are grooved shifted, as well as the toothed linear grooved pre-cutters, much less feed force is needed. Consequently there is minimized friction and therefore less heat generation. A matching centre drill bit and an allen wrench are included in the delivery. Hexagonal shank for a better power transfer. In combination with the pre-drill bit or the guiding pin 1619 ideally suited for inclined bores. Clean drilling in soft wood, European hard wood, chipboard and MDF. We recommend our Bormax® WS prima (pilot guided) with matching extension for smaller diameters (1624 & 1639). For smaller diameters we recommend our Bormax® WS prima with corresponding extension of our series 1624 & 1639.

Technical changes or mistakes reserved! All prices are recommended retail prices additionally value added tax.
