1664	Excellent	TCT Bormax³ Prima (Pilot Guided)

Art.- No.	O-Ø [mm]	Stem Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]	Z		€
1664.015	15	10	10	90	57	1	Accessory	81.70
1664.020	20	10	10	90	57	1	Accessory	83.50
1664.025	25	10	10	90	57	2	Accessory	85.55
1664.030	30	12	10	90	57	2	Accessory	87.50
1664.035	35	12	10	90	57	2	Accessory	91.10
1664.040	40	14	10	90	57	2	Accessory	106.15
1664.045	45	16	10	90	57	2	Accessory	133.85
1664.050	50	18	10	90	57	2	Accessory	151.85

Accessory

Art.- No.	O-Ø [mm]	SØ [mm]	OAL [mm]	Effective L. [mm]	PU [pcs]	Description		€
1624.004	4	4	45	30	1	pre-drill bit	Accessory	4.50
1624.104	4	4	45	30	4	pre-drill bit (PU 4 )	Accessory	15.90
1624.005	4	4	45	30	1	Centre point	Accessory	3.70
1624.105	4	4	45	30	4	Centre point (PU 4 )	Accessory	13.05

Sets

Art.- No.	Description		€
1664.505	5 pcs set in wooden case Ø 15, 20, 25, 30, 35 mm	Accessory	386.35
1664.506	6 pcs set in wooden case Ø 15, 20, 25, 30, 35 mm incl. extension 125 mm	Accessory	412.20
1664.606	6 pcs set in wooden case Ø 15, 20, 25, 30, 35, 40 mm	Accessory	481.75
1664.570	7 pcs set in wooden case Ø 15, 20, 25, 30, 35, 40, 50 mm	Accessory	618.50
1664.508	8 pcs set in wooden case Ø 15, 20, 25, 30, 35, 40, 45, 50 mm	Accessory	738.90
1664.509	9 pcs set in wooden case Ø 15, 20, 25, 30, 35, 40, 45, 50 mm incl. extension 250 mm	Accessory	768.30
1664.504	4 pcs set in wooden case Ø 35, 40, 45, 50 mm	Accessory	434.50

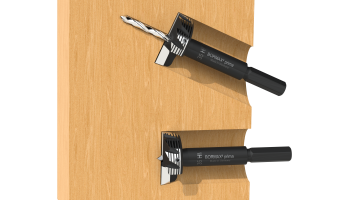

TCT Bormax³ prima with exchangeable centre point and pre-drill bit. The two carbide tipped main cutting edges ensure a maximum service life also in hard and coated materials. Included in the delivery: exchangeable centre point, pre-drill bit Ø 4 mm and one allen key. Hexagonal shank for a better power transfer. Clean drilling at many angles in all wood materials like European and exotic hard wood (also Bongossi), MDF, coated and uncoated chipboards, as well as many plastics, such as acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board. In combination with extension shanks product line 1639 perfectly suitable for drilling deep holes.

Technical changes or mistakes reserved! All prices are non-binding price recommendations excluding VAT. Items marked with (*) are discontinued items.
